Poly.




Brief: Design a mouse.

I took liberties in going against the usual ergonomic mouse designs and aimed for a more sculptural aesthetic to challenge my process.

16 hour project, 2019.

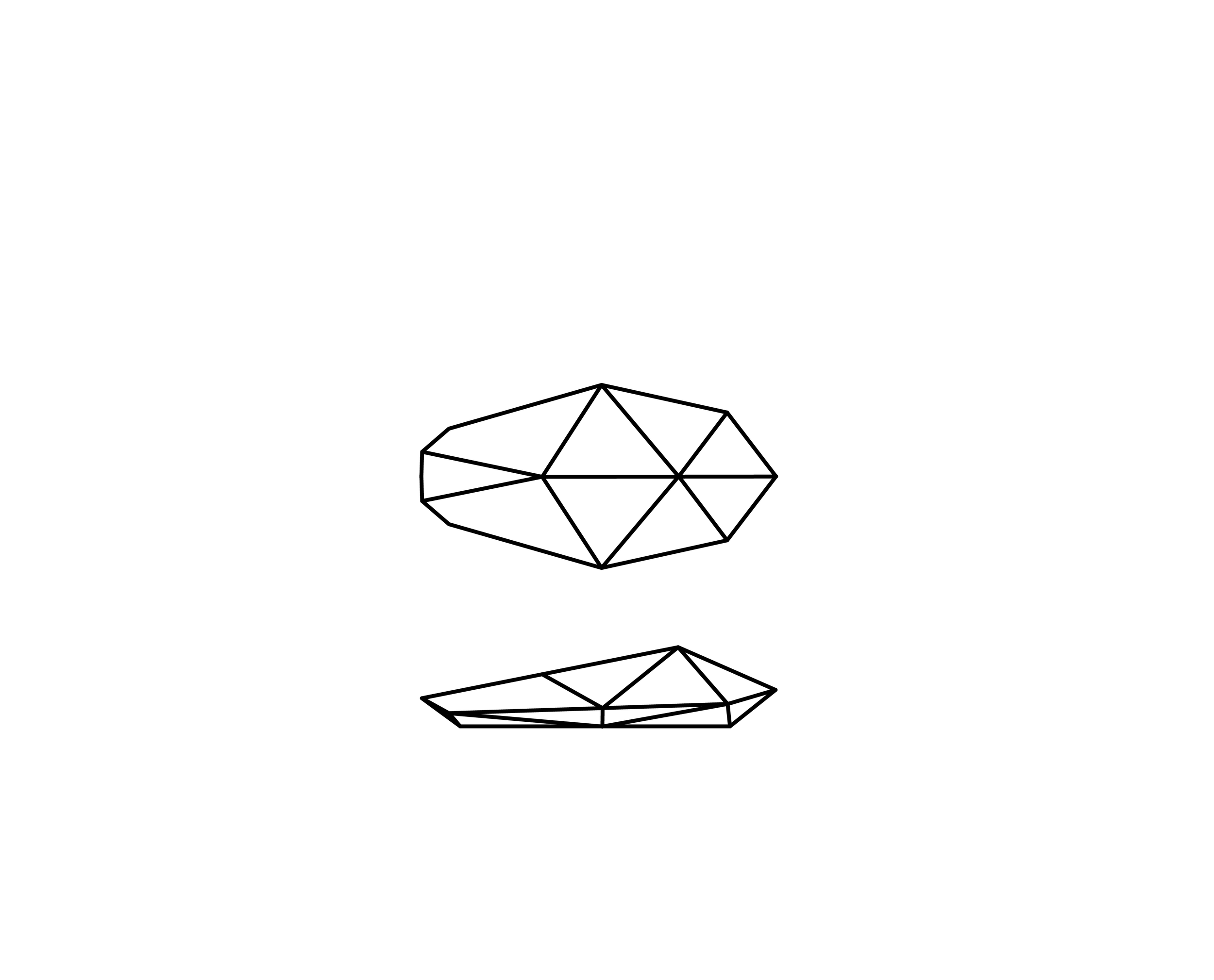

The form language was inspired by low poly 3D print models and the F-117 Nighthawk.

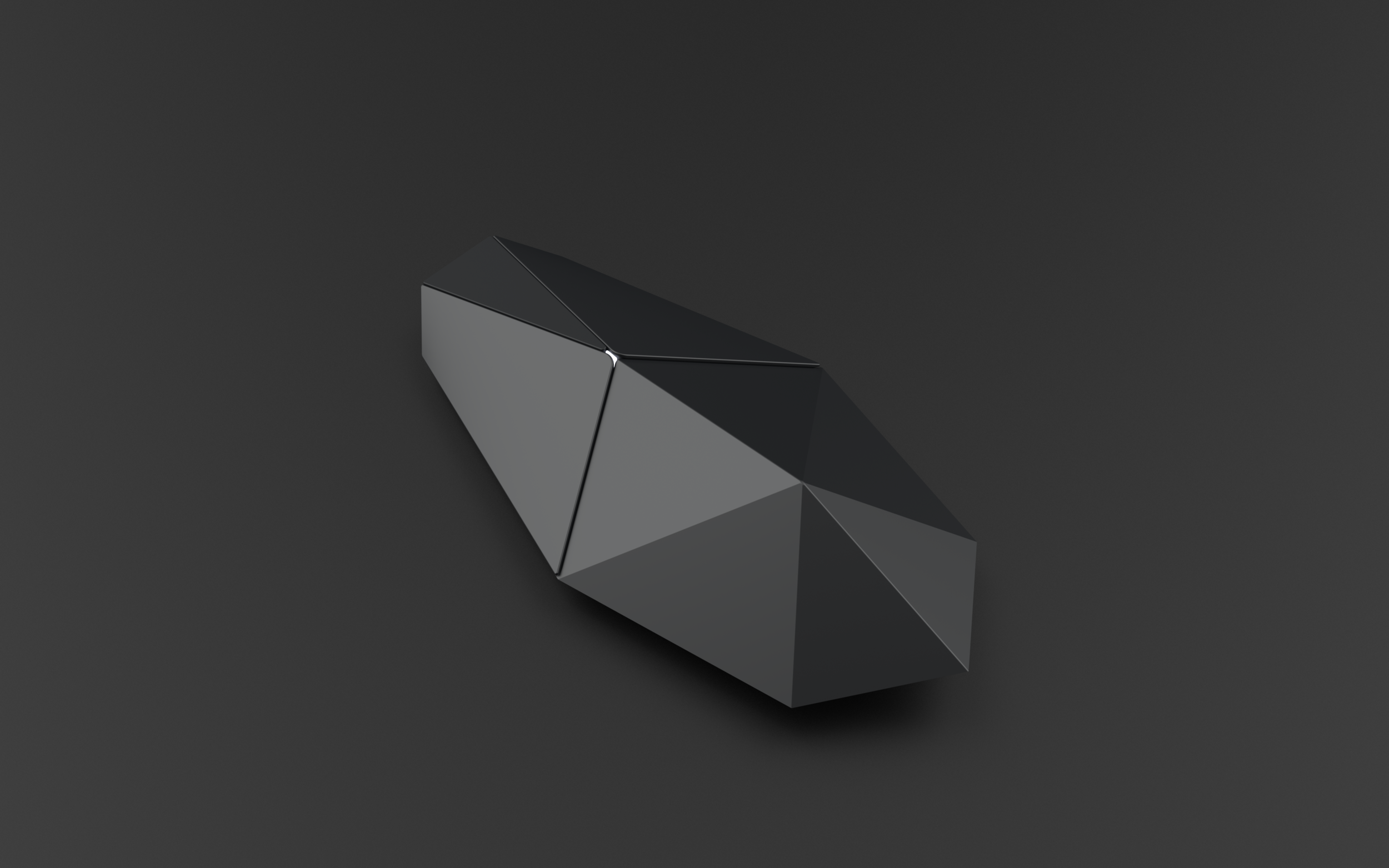

Instead of a scroll wheel, I opted for a triangular gesture pad between the left and right click buttons. Also, the intersection point is the LED indicator for power.

Instead of a scroll wheel, I opted for a triangular gesture pad between the left and right click buttons. Also, the intersection point is the LED indicator for power.

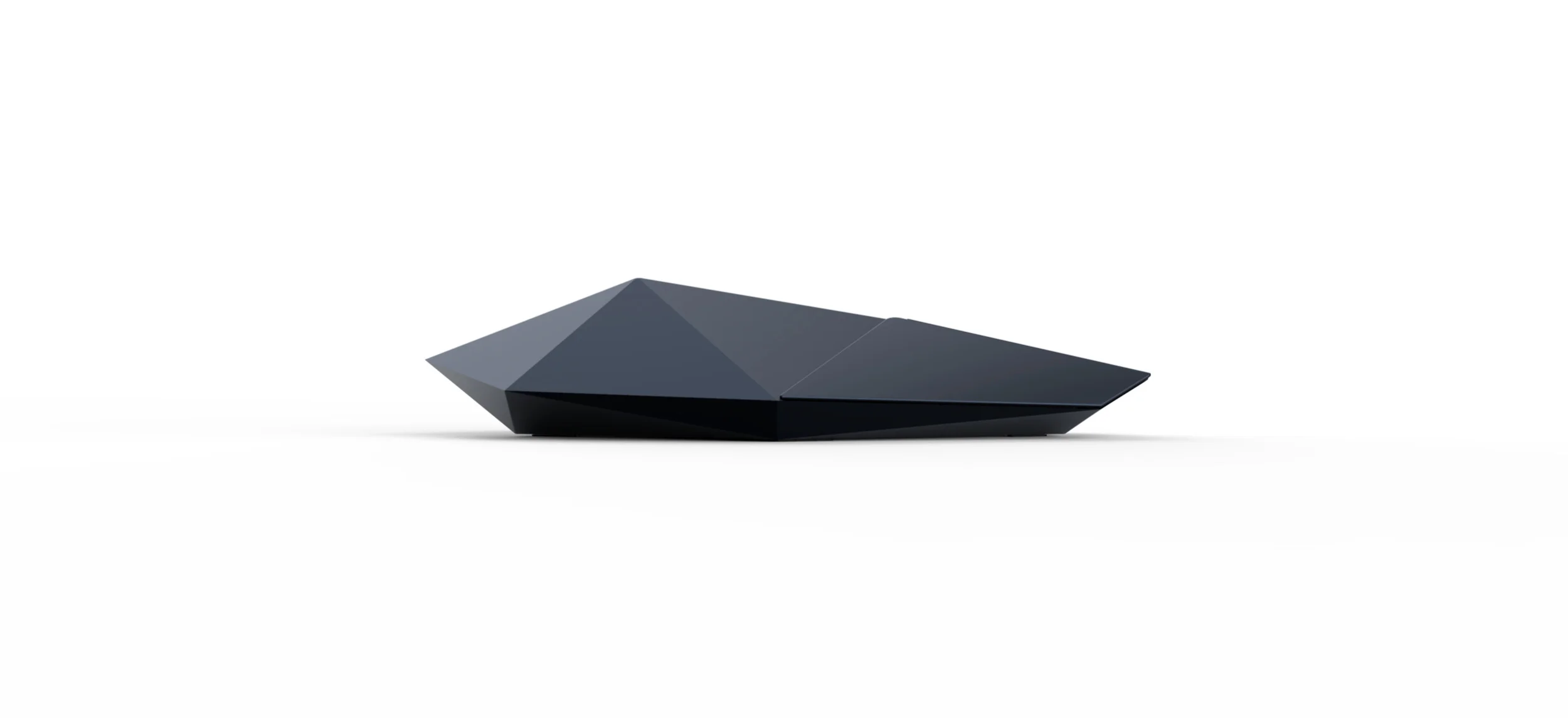

I originally put an external plug-in for USB-C in the design, but decided it was better to celebrate the surfacing and remove that port.

I originally put an external plug-in for USB-C in the design, but decided it was better to celebrate the surfacing and remove that port.

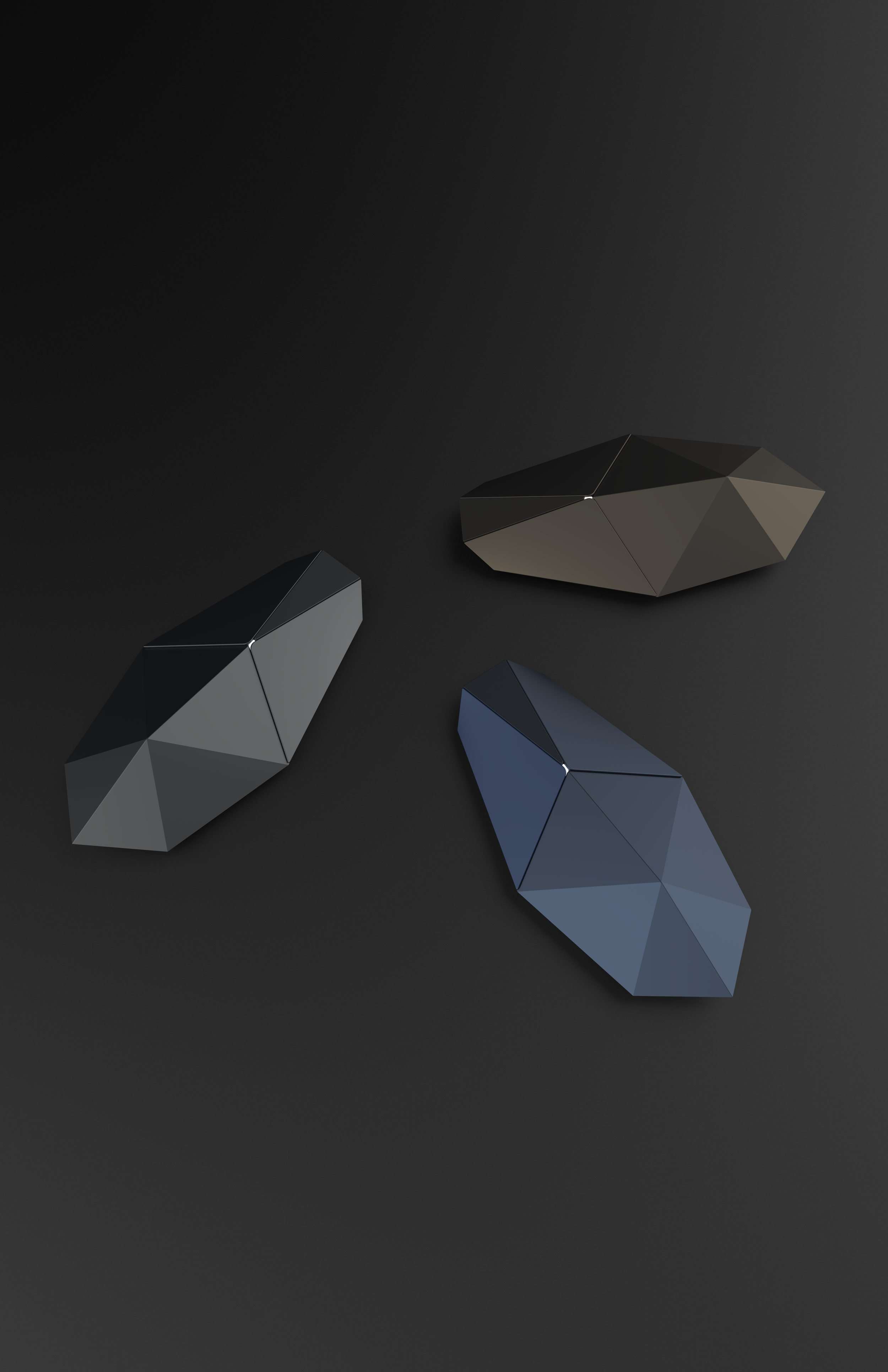

The angles accentuate the variety of values possible with a single finish.

The angles accentuate the variety of values possible with a single finish.



Wrapping it up with packaging. I re-used the vector art underlay that I used as a CAD reference onto the package exterior.

Wrapping it up with packaging. I re-used the vector art underlay that I used as a CAD reference onto the package exterior.
